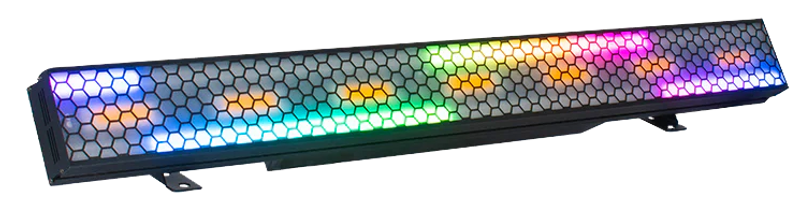

Elektron Bar FX – Powerful LED Lighting Effect by Eliminator Lighting

The Eliminator Lighting Elektron Bar FX is a professional-grade LED lighting effect designed to deliver vibrant colors, dynamic chases, and warm amber tones for DJs, clubs, stage productions, and event venues. With 7 x 40W Amber (1800K) LEDs and 528 x 0.5W RGB (5050 SMD) LEDs, this fixture produces stunning visuals that combine smooth amber warmth with eye-catching RGB effects for endless creative possibilities.

Packed with 60 built-in programs, full 0–100% dimming, and a variable strobe rate of up to 20 flashes per second, the Elektron Bar FX adapts to any performance environment. Choose from DMX512 (7, 12, or 20 channels), primary/secondary, or sound-active control modes to achieve the perfect atmosphere for your event.

Built for reliability, this fixture includes locking power connectors, 3-pin DMX In/Out, a digital LCD display, and adjustable mounting brackets for both truss and floor use. A 3-fan cooling system ensures stable performance even during extended shows, while its compact 10.75 lb design makes it easy to transport and install.

Key Features

• 7 x 40W Amber (1800K) LEDs + 528 x RGB (0.5W, 5050 SMD) LEDs
• 60 built-in programs with speed control
• Multiple dim modes (Standard, Stage, TV, Architectural, Theatre)
• 4 dimming curves: Linear, Square Law, Inverse Square Law, and S-Curve
• 0–100% smooth dimming + 0–20 Hz strobe
• DMX512, primary/secondary, and sound-active operation
• Locking power in/out & 3-pin DMX in/out connections
• Digital LCD display with 4-button navigation
• Durable, compact housing with adjustable dual brackets
• Professional-grade 3-fan cooling system

Specifications

• Light Source: 7 x 40W 1800K Amber LEDs + 528 x 0.5W RGB LEDs | 50,000-hour LED life
• Zones: 7 Amber zones, 66 RGB zones
• Control: DMX512 (7/12/20 channels), primary/secondary, sound-active
• Refresh Rate: 900Hz–25kHz
• Power: 100–240V AC (auto-sensing), 300W max @120V
• Power Linking: Up to 7 units @120V, 14 units @230V
• Connections: Locking IP20-rated 3-pin DMX In/Out + Power In/Out
• Fuse: T5A/250V Glass Fuse (5x20mm)
• Dimensions: 39.5” L x 4” W x 4.75” H (1000 x 100 x 118 mm)
• Weight: 10.75 lbs (4.8 kg)
• Approvals: CE (Pending), cETLus (Pending), IP20 rated

What’s Included

• 1 x Elektron Bar FX Fixture
• 1 x IP20 Locking Power Cable
• User Manual

Why Choose the Elektron Bar FX?

• Perfect for DJs, live shows, stage productions, and event venues
• Blends rich amber tones with dynamic RGB effects
• Lightweight, compact, and easy to set up
• Reliable cooling for long-lasting performance
• Flexible mounting for truss or floor use

Specifications subject to change without notice.
