Description

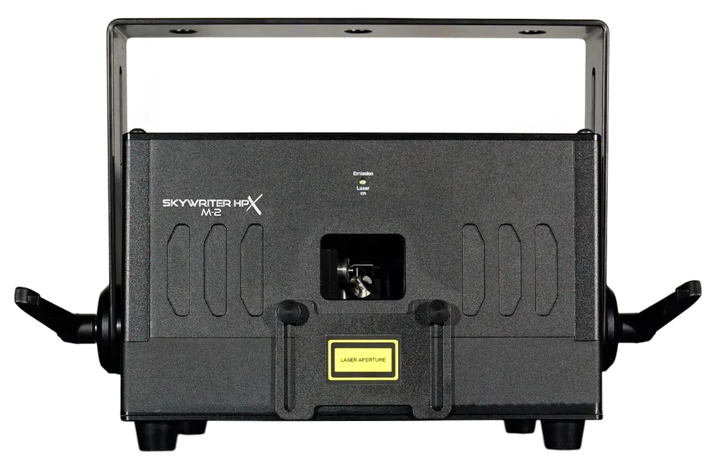

X-Laser Skywriter HPX M-2 –
The X-Laser Skywriter HPX M-2 delivers 2W of brilliant full-color RGB with tight beam precision in a lightweight, compact form—an affordable entry point for professionals working in small to midsize venues. Built for touring rigs, clubs, installs, and mobile production where space and budget matter, the M-2 still packs serious punch with ultra-tight, low-divergence beams engineered for crisp graphics, richly saturated color, and high-precision effects.
Best For
- Small to midsize venues, clubs, and event spaces
- Touring rigs and compact production packages
- Laser graphics, logos, text, and animated projections
- Designers who want console control with quick, repeatable programming
Key Features
- 2W balanced RGB laser engine with direct-injection diode modules
- Professional, precision graphics with fast scanning for sharp text, logos, and animations
- Direct compatibility with lighting consoles using the Mercury Laser Control System
- Multiple control options: 5-pin DMX in/thru, Art-Net, sACN, and ILDA in/thru
- Road-ready durability: sealed optical deck plus rugged construction for live performance demands
- Compact and lightweight: easy to transport and deploy
Console-Ready Mercury Effects Library
The Skywriter HPX M-2 integrates with X-Laser Mercury so it behaves like a fixture on your console—enabling fast programming and repeatable looks without separate laser software.
- 450+ built-in digital patterns (“gobos”)
- 11 digital prisms
- 50 color macros
- 60 motion macros with variable speed and amplitude
- 1,000+ colors with additive RGB analog mixing
Road Ready, Road Rugged
- Fully sealed optical deck helps protect against dust and moisture
- Rugged 6061 aluminum enclosure built for touring and daily use
- Designed for reliable operation in demanding performance environments
Specifications
| Source | 2W balanced RGB laser engine; direct-injection diode modules Red: 638 nm (600mW) | Green: 520 nm (700mW) | Blue: 450 nm (800mW) |
| Photometrics / Optics | High-speed closed-loop galvanometers Max scan angle: 45° Scanner speed: 40,000 PPS @ 8° Beam divergence: < 1.4 mRad Fully sealed optical deck |
| Electrical / Thermal | 90–246V AC auto-switching Power draw: 100W peak Neutrik PowerCON TRUE1 Operating range: 30°F to 105°F (-1°C to 41°C) |
| Control & Interface | X-Laser Mercury integrated; 2.25" LCD Fixture profiles for major console brands EtherStop combined remote stop + control data in/thru ILDA in/thru PowerCON TRUE1 in/thru 5-pin DMX in/thru |
| Color & Effects | Additive RGB analog color mixing; 1,000+ colors; 50 color macros 11 digital prisms; 450+ digital patterns (“gobos”) 60 motion macros (variable speed & amplitude) |
| Dimensions / Weight | 7.9" L x 9.7" W x 6.6" H (9.7" H w/ yoke up) 200 x 246 x 167 mm (246 mm yoke up) Weight: 11 lbs (5 kg) |
| Materials / IP Rating | Rugged 6061 aluminum enclosure IP Rating: IP53 |
| Safety / Compliance | FDA / IEC Hazard Class IV U.S. FDA variance required |
What’s Included
- Laser projector
- USB drive with user training and user manual
- Neutrik PowerCON TRUE1 power cord
- Warranty information
- Beam block foil
- Remote E-Stop plug
- Keys
Safety & Compliance (Important)
- FDA / IEC Hazard Class IV.
- U.S. FDA variance required.
- Lasers can cause eye injury. Intended for professional use by trained operators.
- Always mount securely and avoid audience eye-level exposure.
Additional Details
- SKU:
- HPX M-2
- UPC:
- 899631002657
- Condition:
- New
- Width:
- 10.00 (in)
- Height:
- 12.00 (in)
- Depth:
- 8.00 (in)
