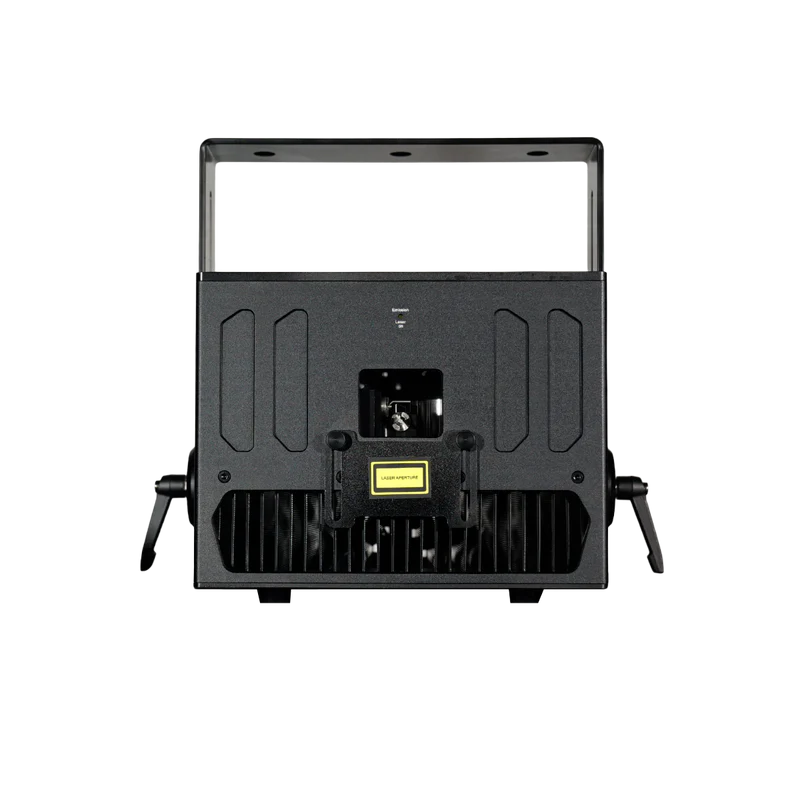

X-Laser Skywriter HPX M-10
The X-Laser Skywriter HPX M-10 is a high-performance 10W balanced RGB laser fixture built for touring, rental inventories, and large-venue installations. Fully integrated with X-Laser’s Mercury Laser Control System, the M-10 plugs directly into professional show environments using 5-pin DMX, Art-Net, or sACN—and programs like a moving-head fixture for clean, console-first workflows.
Best For
- Touring productions and production companies
- Rental houses and high-production events
- Large venues and permanent installations
- Beam effects, liquid skies, graphics looks, and atmospheric laser visuals
Features
Direct Compatibility with Lighting Consoles
- Mercury Laser Control System for fixture-style programming
- Works like any moving-head fixture when connected to a pro console
- Console-ready integration via DMX, Art-Net, and sACN
Road Ready, Road Rugged
- Fully sealed optical deck for protection against dust and moisture
- Rugged construction built for demanding production environments
- External fans and extensive heat sinking help keep the diodes operating efficiently
Big Power, Big Value
- 10W balanced RGB output for impactful looks in bigger spaces
- Skywriter series performance at a value accessible to venues, production teams, and rental houses
- 1,000+ analog colors for rich, expressive color control
Mercury Effects Engine (Built In)
Whether you’re building aerial beam looks or complex show moments, the M-10’s internal engine gives you an enormous content library right from the console:
- 450+ digital patterns (“gobos”)
- 11 digital prisms
- 50 color macros
- 60 motion macros with adjustable speed and amplitude
Quality & Support
- Every unit undergoes a 26-point quality inspection before shipping
- Backed by X-Laser’s no-hassle 2-year warranty
Specifications
| Source | 10W - 120 WATT balanced RGB laser engine; direct-injection diode modules Red: 638 nm | Green: 520 nm | Blue: 450 nm (power per laser diode dependent on total power of laser project options) |
| Photometrics / Optics | High-speed closed-loop galvanometers Max scan angle: 45° Scanner speed: 30,000 PPS @ 8° Beam divergence: < 1.2 mRad Fully sealed optical deck |
| Electrical / Thermal | 90–246V AC auto-switching Power draw: 300W peak Neutrik PowerCON TRUE1 Operating range: 30°F to 105°F (-1°C to 41°C) |
| Control & Interface | X-Laser Mercury integrated; 2.25" LCD Fixture profiles for all major console brands EtherStop combined remote stop + control data in/thru ILDA in/thru PowerCON TRUE1 in/thru 5-pin DMX in/thru |
| Color & Effects | Additive RGB analog color mixing; 1,000+ colors; 50 color macros 11 digital prisms; 450+ digital patterns (“gobos”) 60 motion macros (variable speed & amplitude) |
| Dimensions / Weight | 14.0" L x 13.4" W x 7.7" H (12.4" H w/ yoke up) 355 x 340 x 195 mm (314 mm yoke up) Weight: 21 lbs (9.5 kg) |
| Materials / IP Rating | Rugged 6061 aluminum enclosure IP Rating: IP53 |
| Safety / Compliance | FDA / IEC Hazard Class IV U.S. FDA variance required |
Safety & Compliance (Important)
- FDA / IEC Hazard Class IV.
- U.S. FDA variance required.
- Lasers can cause eye injury. Intended for professional use by trained operators.
- Always mount securely and avoid audience eye-level exposure.
Additional Details
- SKU:
- HPX M-5
- UPC:
- 899631002442
- Condition:
- New
- Width:
- 18.00 (in)
- Height:
- 14.00 (in)
- Depth:
- 12.00 (in)
