Pixie Driver 2000 V3 – Professional Pixel Driver for Pixie Strips

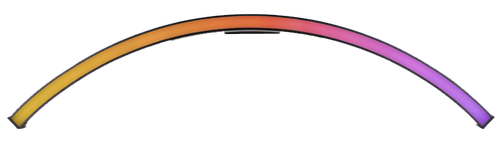

ADJ Pixie Driver 2000 V3 is engineered specifically to power and control the ADJ Pixie Strip Series, including the Pixie Strip 30, Pixie Strip 60, Pixie Strip 120, and Pixie Curve 60. Designed for both touring productions and permanent installations, this driver offers the perfect balance of simple onboard controls and advanced pixel mapping options.

With easy manual RGB, dimming, and strobe control as well as full pixel mapping via Kling-Net, Art-Net, and sACN, the Pixie Driver 2000 V3 gives lighting designers complete creative freedom. It supports up to 2,040 pixels across two outputs (1,020 per port), making it ideal for everything from small club installs to large-scale stage designs.

Practical design features include a universal auto-switching power supply, locking RJ45 Ethernet ports, 4-pin power/data outputs, and a front-panel USB port for quick firmware updates. Its OLED display with 4-button menu ensures easy navigation, while mounting options include 19-inch rack ears or truss mounting (with clamp, sold separately). Compact, reliable, and versatile, the ADJ Pixie Driver 2000 V3 is the essential control hub for your Pixie Strip setup.

Key Features

• Power/data supply for ADJ Pixie Strip 30, 60, 120, and Pixie Curve 60
• Manual RGB color, dimming, and strobe controls
• Internal programs for instant operation
• Full pixel mapping via Kling-Net, Art-Net, and sACN
• Supports up to 2,040 pixels (1,020 per port)
• OLED screen with 4-button menu
• RDM compatible
• USB port for firmware updates

Control Quantity

• Max 34x Pixie Strip 30 per port
• Max 17x Pixie Strip 60 or Pixie Curve 60 per port
• Max 8x Pixie Strip 120 per port
• Any combination up to 1,020 pixels per port

Connections

• Indoor power locking input
• Two locking RJ45 Ethernet ports
• Two 4-pin DC24V power/data outputs to Pixie Strips

Mounting Options

• Includes 19-inch rack mount ears
• Bolt-on clamp mounting (clamp not included)
• Integrated safety eye for secure installation

Electrical

• Multi-voltage operation: AC 100–240V, 50/60Hz
• Power consumption: 400W max
• Operating temperature: -4°F to 113°F (-20°C to 45°C)

Dimensions & Weight

• Dimensions (LxWxH): 18.9” x 7.11” x 2.91” (480 x 180.8 x 74mm)
• Weight: 5.6 lbs. (2.5 kg)

What’s Included

• Pixie Driver 2000 V3
• Twist-lock power cable
• 19-inch rack mount ears
• 4-pin data cable

Approvals

• CE
• cETLus

Accessories

• PSLC1 (PIX158): 1-foot Pixie Strip Link Cable
• PSLC3 (PIX174): 3-foot Pixie Strip Link Cable
• PSLC5 (PIX188): 5-foot Pixie Strip Link Cable
• PSLC10 (PIX200): 10-foot Pixie Strip Link Cable
• PSLC15 (PIX213): 15-foot Pixie Strip Link Cable
• PSLC25 (PIX229): 25-foot Pixie Strip Link Cable
• PSLC50 (PIX242): 50-foot Pixie Strip Link Cable

Why Choose the Pixie Driver 2000 V3?

• Specifically built for the ADJ Pixie Strip Series
• Handles large-scale LED pixel installations with ease
• Flexible control: onboard, Kling-Net, Art-Net, and sACN
• Compact, rack-mountable design with versatile mounting options
• Reliable ADJ performance, CE and cETLus approved
