Description

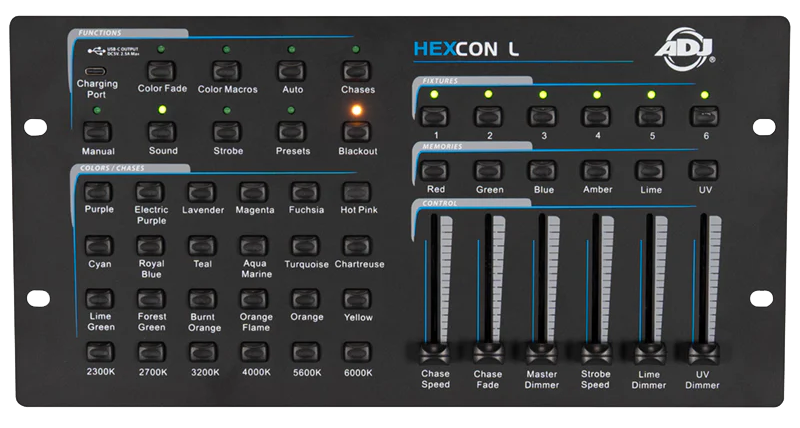

The HEXCON L is a professional 36-channel DMX controller purpose-built for RGBAL+UV HEX Series LED fixtures. Designed for precision control and seamless operation, it allows users to manage up to six individual fixtures or fixture groups with ease. Each fixture can be assigned to DMX channels 1, 7, 13, 19, 25, or 31 for full functionality.

With its intuitive control surface and vibrant color capabilities, the HEXCON L offers the perfect balance between hands-on control and automated operation for stage lighting, events, and production environments.

Advanced Control Features

The HEXCON L’s user-friendly interface includes 24 vivid pre-programmed color macros and six user-programmable presets (Red, Green, Blue, Amber, Lime, and UV). Six multi-function faders allow users to directly control:

Individual color intensity (RGBAL+UV)
Chase speed and fade time
Master dimming
Strobe rate and effects

Eight function buttons give instant access to Color Fade, Color Macro, Auto Run, Chase, Manual, Sound Active, Strobe, and Blackout modes—delivering total creative control with minimal setup.

Key Features

Compact DMX controller for ADJ and RGBAL+UV HEX series products
Control up to 6 individual fixtures or fixture groups
24 pre-programmed color macros + 6 user-programmable presets
30 color preset direct access buttons
6 multi-function faders for full manual control
Color Macro, Color Fade, Auto, Chase, Sound Active, and Strobe modes
Real-time Speed and Fade adjustment for all chase programs
Sound Active mode via built-in microphone with adjustable sensitivity
Variable strobe rate from 0.33Hz to 11Hz
Dedicated Blackout button for instant scene control
5-pin XLR DMX output connector
USB-C power and charging port (charges most mobile devices)
Included 5VDC 3A UL-approved USB-C power supply

Specifications

DMX Channels: 36
DMX Output: 5-pin XLR
Power Input: 5VDC 3A USB-C (included)
Power Consumption: 15W
IP Rating: IP20 (indoor use)
Dimensions: 360 x 183 x 69 mm
Weight: 1.74 kg
Ambient Usage Temperature: -20°C ~ 40°C
Storage Temperature: -30°C ~ 45°C

Applications

Stage and theater lighting control
Event production and rentals
Nightclubs and entertainment venues
Worship, broadcast, and touring environments

Included Accessories

5VDC 3A USB-C Power Supply
User Manual

Why Choose the HEXCON L

Compact yet powerful, the HEXCON L delivers professional-grade DMX control in an easy-to-use interface. Ideal for mobile DJs, event producers, and lighting technicians who need fast color selection and flexible performance options for RGBAL+UV fixtures.

Customer Reviews ★★★★★

★★★★★ 5/5 Stars – “Perfect controller for HEX fixtures. Easy to use and super reliable!”
★★★★☆ 4.5/5 Stars – “Great value for the features. USB-C charging is a nice touch.”
★★★★★ 5/5 Stars – “Highly recommend for anyone running multiple RGBAL+UV lights.”

Specifications subject to change without notice.
