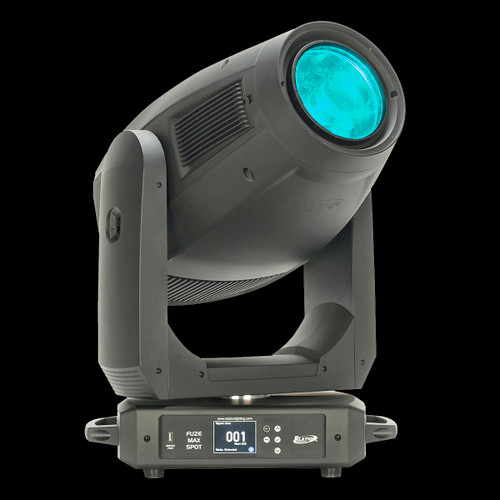

Description

The Elation FUZE MAX Spot is a full-spectrum automated LED spot fixture designed for theater, television, and a wide array of precision lighting applications. Its 92 CRI engine utilizes an 800W 5-color homogenized LED array consisting of Red, Green, Blue, Mint, and Amber sources. These carefully tuned LEDs ensure accurate color reproduction and dynamic whites while delivering a powerful output of over 21,000 lumens. Virtual color temperature, Magenta/Green adjustment, and CMY emulation provide designers with immediate access to an impressive LED color array.

Key Features

Full Spectrum 800W RGBMA LED Engine
Precise dynamic whites from 2400K to 8500K
Instant color changes and natural color transitions
Rich and intense primary colors
Dual rotating and fixed gobos plus animation wheel
Iris, prism, and dual frost
Wide zoom range from 7° to 53°
Large 140mm front aperture

Specifications

Light Source: 800W 6,500K RGBMA LED Engine
Average LED Life: 30,000 hours*
Photometric Data: 21,000 total lumen output; CRI 92
Zoom Range: 7° - 53°
Beam Angle: 6.6° - 50.3°
Field Angle: 7.8° - 55°
Effects: Motorized zoom, dual variable frost filters (medium/wash), 4-facet round and linear prisms, motorized iris, variable 16-bit dimming curve modes, high-speed electronic shutter and strobe
Color: RGBMA color array, CMY emulation, variable CCT 2400K - 8500K, Green/Magenta shift, virtual gel swatch book
Gobos: 2x 6 rotating/indexing interchangeable glass gobos, 1x 7 fixed interchangeable glass gobos, animation wheel
Control: 4 DMX channel modes (RGBMA 34/44, CMY 32/40), 16-bit pan, tilt, and dimming control, DMX adjustable LED frequency, DMX, RDM, Art-NET, sACN protocol support
Connections: 5-pin DMX In/Out, locking Ethernet In/Out, IP65 locking power cable In
Display: 4-button touch control panel, full-color 180° reversible LCD menu display
Pan/Tilt: Pan: 540°/630°, Tilt: 250°
Dimensions: Length: 18.19" (462mm); Width: 21.26" (540mm); Height: 28.3" (719mm)
Weight: 71.2 lbs. (32.3kg)
Electrical: AC 100-240V, 50/60Hz; Max power consumption: 1214W
Operating Temperature: 14°F to 113°F (-10°C to 45°C)
Approvals/Ratings: CE | cETLus | IP20

*Test lab conditions. Actual performance may vary based on environmental conditions, power/voltage, usage patterns, control, and dimming.

Applications

Theater productions
Television studios
Concerts and live events
Corporate presentations
Houses of worship

Why Choose the Elation FUZE MAX Spot?

Exceptional brightness and color mixing capabilities
Advanced effects for creative lighting designs
Robust construction for demanding environments
Versatile control options for seamless integration
Quiet operation suitable for noise-sensitive applications

Customer Reviews

★★★★★ Outstanding Performance – "The FUZE MAX Spot delivers unparalleled brightness and color accuracy. It's a game-changer for our productions."
★★★★☆ Versatile and Reliable – "We've used this fixture in various settings, and it consistently performs beyond expectations."
★★★★★ Highly Recommend – "The range of effects and color mixing options make the FUZE MAX Spot a top choice for any lighting professional."
