Description

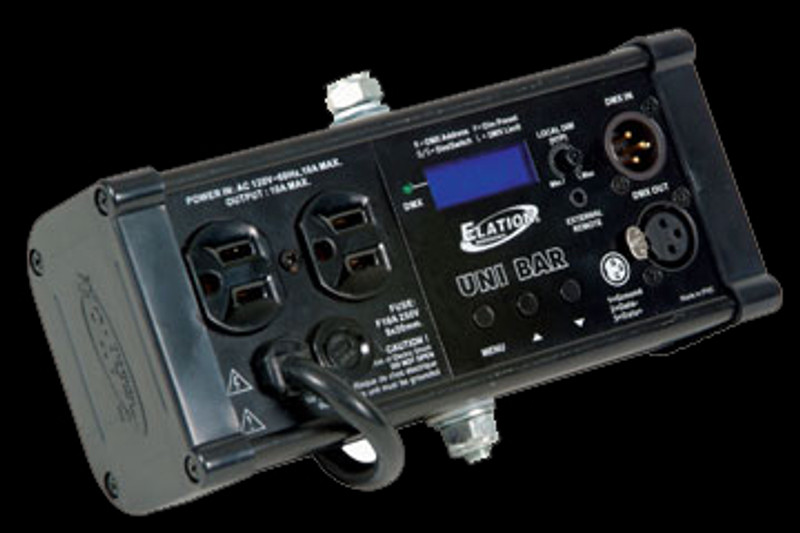

The UNI BAR is a compact single DMX channel dimmer featuring 10 amps of maximum channel output, dimmer or switch pack modes, dimmer preset and limit settings, local HTP dimmer control, input for an optional analog HTP dimmer controller, power failure memory, 3pin DMX in/out, (2) Edison 3-prong outputs, 3-button control panel and LCD display, and can be easily mounted using standard truss clamps or couplers.
Features
- Single DMX Channel Switch or Dimmer Pack Mode
- 10 Amp Maximum Channel Output
- Dimmer Preset and Dimmer Limit Settings
- Local HTP Dimmer Control Dial
- Input for Optional Analog HTP Dimmer Controller
- Power Failure Memory
- Truss Mountable
Specifications
- CONTROL / CONNECTIONS
- 1 DMX Channel
- 3-Button Control Panel
- LCD Menu Display
- On-board HTP Dimming Control Dial
- Input for Optional Analog HTP Dimmer
- (2) Edison 3-prong Outputs (10A Max Total Output)
SIZE / WEIGHT
- Length: 7.83” (200mm)
- Width: 3.23” (82mm)
- Vertical Height: 2.63” (66.8mm
- Weight: 2.4 lbs. (1.1 kg)
ELECTRICAL
- AC 120V - 60Hz / 10A Max Total Output
Specifications and documentation subject to change without notice.
Downloads
Additional Details
- SKU:
- UNI-BAR
- UPC:
- 837874007305
- Condition:
- New
- Width:
- 10.00 (in)
- Height:
- 5.00 (in)
- Depth:
- 5.00 (in)
