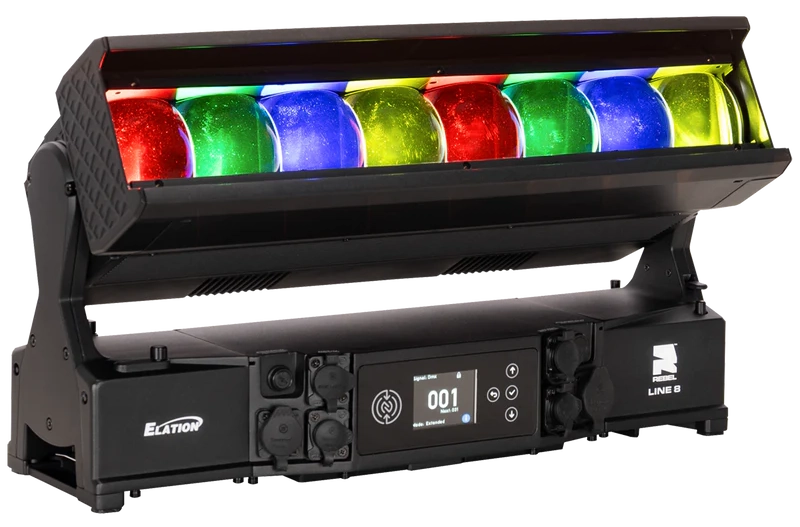

Elation REBEL LINE 8 – IP65 RGBL LED Pixel Bar with SparkX Beam Effect

The Elation REBEL LINE 8 is a compact, high-output IP65-rated RGBL LED bar that delivers serious punch in a small footprint. Powered by (8) 60W RGBL LEDs and (16) 5W CW SparkX LED pixels, it creates rich color washes, tight beams, and sparkling accent effects for stages, events, and architectural installs. With motorized zoom, 210° tilt, full pixel control, and Aria x2 wireless device management, the REBEL LINE 8 is ready for modern, networked lighting systems indoors or outdoors.

Product Highlights

• Compact power bar: Shorter 0.5m form factor with big output and professional features.
• Dual LED engine: (8) 60W RGBL LEDs + (16) 5W CW SparkX LED pixels for layered wash and beam effects.
• IP65-rated: Built for outdoor events, festivals, and permanent installations.
• Motorized zoom: 4°–35° beam range for punchy beams or wide, smooth washes.
• 210° tilt: Wide aiming range for walls, ceilings, stages, and scenic elements.
• Variable CCT: 2400K–8500K for precise white tuning from warm to cool.
• Full pixel LED control: Map RGBL and SparkX pixels for advanced chases and eye-candy.
• Broadcast-ready: CRI 82 and adjustable DMX refresh (900–25,000 Hz) for flicker-free camera work.
• Networked control: DMX, RDM, Art-Net, and sACN with IP65 5-pin XLR and RJ45 connections.
• Fast configuration: Aria x2 wireless device management and NFC configuration support.

Specifications

Source

• LEDs: (8) 60W RGBL LEDs
• SparkX LEDs: (16) 5W CW SparkX LED pixels
• Average LED life: 30,000 hours*
• *Test lab conditions. May vary depending on several factors including but not limited to environmental conditions, power/voltage, usage patterns (on-off cycling), control, and dimming.

Photometric Data

• Total lumen output (Integrating Sphere):
• • All LED: 11,548 lumens
• • RGBL LED: 7,128 lumens
• • CW LED: 4,752 lumens
• CRI: 82
• Zoom range: 4° – 35°

Effects

• Motorized zoom for flexible beam and wash control.
• Full pixel LED control for both RGBL and SparkX engines.
• SparkX LED beam effect for dynamic, textured visuals.
• Electronic dimmer and strobe with precise control.
• Variable 16-bit dimming modes and curves for smooth fades and response.
• Tilt angle: 210°

Color

• RGBL LED array for saturated colors and powerful white output.
• CW SparkX LED array for crisp, cool white accents and beams.
• Variable CCT: 2400K – 8500K.
• Virtual gel swatch book for fast access to classic, pre-defined color looks.

Control / Connections

• DMX channel modes: 3 modes (22 / 30 / 70 channels).
• DMX adjustable refresh rate: 900–25,000 Hz.
• User interface: 4-button control panel with LED display.
• Aria x2 wireless device management for remote monitoring and configuration.
• NFC configuration for fast, app-based setup.
• Supported protocols: DMX, RDM, Art-Net, sACN.
• DMX I/O: IP65 locking 5-pin XLR In/Out.
• Network I/O: IP65 locking RJ45 ethernet In/Out.
• Power I/O: IP65 locking power cable In/Out.

Size / Weight

• Length: 19.7 in (500 mm)
• Width: 6.1 in (168 mm)
• Height (head up): 13.4 in (342 mm)
• Height (head 90°): 10 in (254 mm)
• Weight: 29 lb (13.2 kg)

Electrical / Thermal

• AC power: 100–240V, 50/60 Hz
• Max power consumption: 810W
• Ambient temperature range: -4°F to 113°F (-20°C to 45°C)
• BTU/hr (+/- 10%): 2,762.1

Included Items

• Omega brackets (x2)
• Front louver/grid
• Safety cable, IP65 rated
• IP65 locking power cable

Approvals / Ratings

• IP65 – weather-resistant for outdoor use.

Firmware Updates

• Current version: Refer to the latest manufacturer resources.
• Software update: Click HERE (link to official firmware/software download page).

Specifications and documentation subject to change without notice. Always confirm critical data with the latest manufacturer documentation before specifying or installing.
