Description

CADLive is designed to outperform your expectations and deliver exceptional performance. Engineered to compliment the new generation of exceptional sound systems - The CADLive Series taps our Equitek studio heritage along with our live sound know-how in creating an impactful and easy to use line of mics.

The CADLIve 4000 series Digital Wireless feature True Diversity operation to minimize multipath interference. Frequency agile design partnered with ScanLink™ technology will precisely scan, select and link to the optimum channel allowing for easy flexible frequency planning. CADLive wireless features 10, 30, 50mW transmitter power adjustment and dynamic range up to 115dB. Receivers and transmitters are equipped with a high definition LCD display and full RF, AF, Battery Life, Mic Sensitivity and RF power metering.

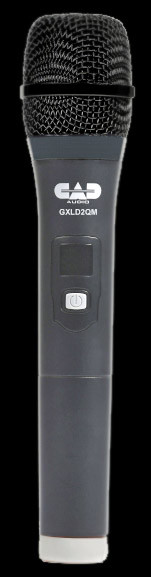

The CADLive handheld transmitter features metal construction and the CADLive D90 Supercardioid dynamic capsule that provides a powerful, smooth and highly articulate profile. The handheld and body pack transmitters also include SoftTouch™ multi-function On-Off/Mute switches. CADLive bodypack transmitters are equipped with CADTone™ circuitry ensuring accurate reproduction of Hi-Z guitar and Lo-Z mic inputs.

Receivers are housed in an all-metal chassis and supplied with single/dual rack ears and a BNC relocation kit. Body pack systems include Equitek E19 earworn and E29 lavalier mics. Both systems are supplied with a heavy-duty carry case.

True Diversity to minimize multipath interference
Frequency agile operation for maximum frequency plan flexibility
ScanLink™ technology for instantaneous and automatic channel configuration
CADTone™ Body Pack input – Optimized Impedance Interface - Hi-Z for Guitar and Lo-Z for mic
Metal construction Handheld Transmitter equipped with CADLive D90 capsule
High Contrast LCD displays on TX and RX
Transmitters feature 10, 30, 50mW power adjustment to aide in multiple system applications
902-928MHz operation free from FCC TV spectrum legislation
Simultaneous usage of up to 17 systems
Dynamic Range > 115dB
AA Batteries with up to 15 Hrs of battery life
Systems ship with rack ears single/dual BNC relation kit and durable carry case
BodyPack systems include miniature E19 Earworn, E29 Lav, WXGTR guitar cable
XLR and ¼” outputs on receiver

Specifications
Frequency Range T Band 902-928MHz
Frequency Response 40Hz – 15kHz
Dynamic Range >115dB
Transmitter power Switchable 10, 30, 50mW
Battery Life Up to 15 Hrs
Weight 5 Lbs
Dims 17” X 12” x 4”
