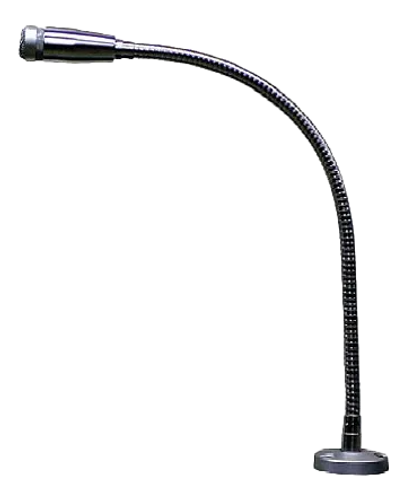

CAD Astatic 119S-19 Cardioid Dynamic Microphone w/ DPDT Push-to-Talk, 19"

CAD Astatic 119S-19 Cardioid Dynamic Microphone w/ DPDT Push-to-Talk, 19" Gooseneck, 2-3/4" Flange & 6' Cable – Chrome (Not Assembled)

The CAD Astatic 119S-19 is a rugged cardioid dynamic gooseneck microphone designed for professional paging, dispatch, and commercial communication systems. Featuring a DPDT push-to-talk switch, 19" chrome gooseneck, 2-3/4" mounting flange, and a 6-foot shielded cable, this mic delivers focused speech pickup and reliable performance in busy, high-noise environments. This version ships not assembled, giving installers the flexibility to route the cable, mount the flange, and finish the setup to their exact system requirements.

Key Features

• Cardioid Dynamic Element: Unidirectional pickup pattern focuses on the talker and helps reject background noise and feedback in noisy spaces.
• DPDT Push-to-Talk Switch: Long-life DPDT (double-pole, double-throw) push-to-talk switch for keying paging systems, intercoms, and external control circuits.
• 19" Heavy-Duty Gooseneck: Chrome-plated gooseneck provides wide positioning range and holds its shape, ideal for counters, podiums, and dispatch consoles.
• 2-3/4" Mounting Flange: Die-cast flange allows secure, flush-mount installation on desktops, kiosks, checkouts, and control surfaces.
• 6' Attached Shielded Cable: Durable shielded cable with unterminated leads for direct wiring into amplifiers, junction boxes, or custom connectors.
• Low Impedance Balanced Output: 500-ohm balanced design supports longer cable runs with reduced hum and noise in commercial installations.
• Built-In Blast / Pop Protection: Internal wind and blast filter helps reduce plosives and breath noise for clearer announcements.
• Shock-Isolated Element: Internal isolation minimizes handling and stand-borne vibrations transmitted through the gooseneck.
• Durable Chrome Finish: Chrome-plated housing and gooseneck provide a professional look and long-term durability in demanding environments.
• Not Assembled Version: Ships with components unassembled so installers can easily route cable, mount hardware, and integrate into custom panels.

Ideal Applications

• Drive-thru and quick-service restaurant order stations
• Retail, supermarket, and customer service counters
• Transportation and fleet dispatch centers
• Warehouse and industrial paging / intercom systems
• Security desks, reception points, and information kiosks
• Church, school, or municipal podiums and lecterns

Specifications

• Microphone Type: Dynamic, moving coil
• Polar Pattern: Cardioid (unidirectional)
• Recommended Use: Speech, paging, dispatch, announcements
• Impedance: 500 ohms, low impedance balanced
• Switch: DPDT push-to-talk (momentary, external contact closure)
• Gooseneck Length: 19" (chrome-plated, heavy-duty)
• Mounting Flange: 2-3/4" die-cast flange for permanent mounting
• Cable Length: 6 ft (1.8 m) shielded cable, unterminated leads
• Output Connection: Bare leads (ready for terminal strip or connector)
• Finish: Chrome (microphone and gooseneck)
• Orientation: Top-address capsule

What’s Included

• CAD Astatic 119S-19 cardioid dynamic microphone assembly
• 19" chrome gooseneck
• 2-3/4" chrome mounting flange
• 6' shielded cable with unterminated leads
• Basic documentation (may vary by shipment)

Not Assembled Version – Installer Notes

• Ships with components separated to simplify cable routing through desks, panels, or conduits.
• Ideal for integrators who need to pre-wire or custom-fit the mic into consoles or custom furniture.
• Requires basic assembly and wiring by the installer or technician.

Why Choose the CAD Astatic 119S-19?

The CAD Astatic 119S-19 is a proven, no-nonsense paging and dispatch microphone trusted in commercial environments. Its cardioid pattern and dynamic element deliver intelligible speech, while the DPDT push-to-talk switch integrates smoothly with most paging and intercom systems. With a flexible 19" gooseneck, solid 2-3/4" flange, 6' cable, and installer-friendly not-assembled packaging, it’s a smart choice for new builds, retrofits, and system upgrades where reliability and clean installation matter.
