CAD Astatic 119L-19 Cardioid Dynamic Microphone, 19" Gooseneck

CAD Astatic 119L-19 Cardioid Dynamic Microphone, 19" Gooseneck, 2-3/4" Flange & 6' Cable – Chrome (Not Assembled)

The CAD Astatic 119L-19 is a heavy-duty cardioid dynamic gooseneck microphone designed for fixed paging, public address, and communication systems. With a 19" chrome gooseneck, 2-3/4" mounting flange, and a 6-foot shielded cable, it delivers focused, intelligible speech in busy environments such as fast-food restaurants, supermarkets, gas stations, transportation hubs, and commercial facilities. This version features no built-in switch and ships not assembled, giving installers maximum flexibility for custom integration into consoles, countertops, and enclosures.

Key Features

• Cardioid Dynamic Element: Directional cardioid pattern focuses on the talker and minimizes feedback, background noise, and room reverberation.
• 19" Heavy-Duty Gooseneck: Chrome-plated gooseneck provides generous reach and holds its position securely for precise microphone placement.
• 2-3/4" Mounting Flange: Rugged die-cast flange for permanent installation on podiums, counters, kiosks, and dispatch consoles.
• 6' Shielded Cable: Permanently attached, low-impedance shielded cable with stripped and tinned ends for direct wiring to amplifiers, terminal strips, or custom connectors.
• No On-Board Switch: Ideal for systems where muting and paging control are handled at the mixer, DSP, or paging station rather than on the mic.
• Voice-Optimized Frequency Response: Slightly rising high-frequency response and gentle low-frequency roll-off enhance speech clarity and intelligibility.
• Internal Shock Isolation: Shock-mounted element reduces handling, gooseneck, and stand-borne noise.
• Multi-Stage Blast Filter: Built-in wind and pop filter helps control breath noise, plosives, and air blasts.
• Low-Impedance Balanced Output: 500-ohm balanced output supports longer cable runs with reduced hum and interference.
• Durable Chrome Construction: Zinc and brass housing with satin chrome finish stands up to daily use in demanding commercial environments.
• Not Assembled Version: Ships with components unassembled to simplify routing of the cable and mounting hardware during installation.

Ideal Applications

• Fast-food and drive-thru order stations
• Supermarket and retail service counters
• Gas stations and convenience store paging
• Transportation and fleet dispatch centers
• Commercial and industrial PA / intercom systems
• Church, school, and municipal podiums / lecterns
• Security desks, information kiosks, and reception

Technical Specifications

• Microphone Type: Dynamic, moving coil

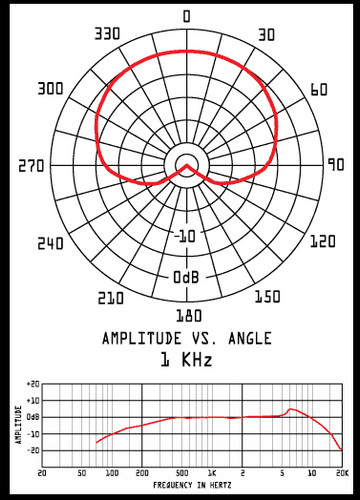

• Polar Pattern: Cardioid (unidirectional)
• Primary Use: Speech, paging, announcements
• Frequency Response: 150 Hz – 12 kHz (voice-optimized)
• Sensitivity: Approx. -57 dBV (≈ 1.4–1.6 mV/Pa)
• Impedance: 500 ohms, low impedance balanced
• Output: Two-conductor shielded cable, unterminated (stripped and tinned leads)
• Gooseneck Length: 19" heavy-duty chrome-plated steel
• Flange Diameter: 2-3/4" (with 5/8"-27 thread)
• Cable Length: 6 ft (approx. 1.8 m) shielded synthetic jacket cable
• Housing Material: Die-cast zinc and brass
• Finish: Satin chrome
• Orientation: Top/ end-address capsule
• Approx. Weight: ~12 oz (340 g) including gooseneck and flange

What’s Included

• CAD Astatic 119L-19 cardioid dynamic microphone element
• 19" chrome gooseneck
• 2-3/4" chrome mounting flange
• 6' permanently attached shielded cable (unterminated)
• Basic documentation (may vary by shipment)

Not Assembled – Installer Notes

• Ships in component form to simplify running the cable through desks, panels, racks, or conduits.
• Ideal for integrators who need clean, flush-mount installations with hidden wiring.
• Requires basic assembly and wiring by a technician or installer.

Why Choose the CAD Astatic 119L-19?

If you need a reliable, no-switch paging microphone for fixed installations, the CAD Astatic 119L-19 is a proven choice. Its cardioid pattern, internal shock isolation, and blast filter deliver clear, intelligible speech, while the 19" gooseneck and 2-3/4" flange allow for clean, professional mounting in a wide range of commercial environments. With a rugged chrome finish, low-impedance balanced output, and installer-friendly not-assembled design, the 119L-19 is built for long-term, trouble-free service in your paging and PA systems.
