Description

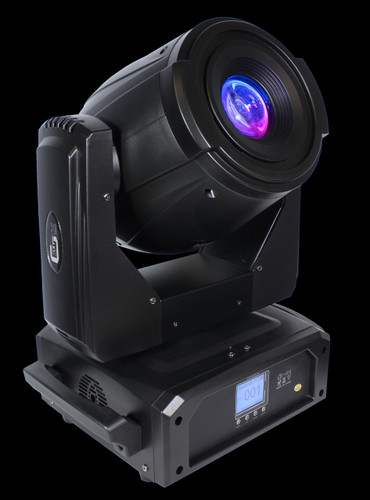

The Laser Blade G is a powerful, compact moving head fixture with lightning fast 540° pan & 270° tilt, and equipped with a 50mW, CLASS 3R wide beam laser with 15KPPS galvo scanners for smooth shapes, animations, and more for jaw dropping effects! It's very bright, and packed with a ton of goodies like 133 geometric figures, 14 animations, 76 types of beam patterns, and even 2-in-1 frame projection in DMX mode where any two separate shapes or patterns can be individually positioned, rotated, zoomed, and more!
It can be operated in standalone mode, auto-beam, auto-animation, sound active mode, or via DMX where you take full control of pan/tilt, zoom in/out, rotating, drawing, billowing, speed, and animation selection. Want to really throw things over the edge at your next show? Set up two or more Laser Blade™ G fixtures in master slave mode with reversed pan and tilt, add some fog, and get ready to witness some serious mirrored fat beam "Liquid Sky" effects! This fixture also features a super easy-to-use 4-button LCD control panel, IEC power input connection, 3-pin DMX in/out connections, mounting bracket, and weighs in at less than 7 lbs.
It’s a great effect for venues large or small, and perfect for DJs, bands, clubs, and bars looking for the next new and cool piece to add to their light show!
Features
50mW, CLASS 3R fat beam laser + 15KPPS galvo scanners
Pre-programmed with 133 geometric figures, 14 animations, & 76 beam patterns
Pan: 540º/ Tilt: 270º
Easy-to-use 4-button LCD control panel menu
Built-in auto-beam, auto-animation and sound-activate programs
In DMX mode, 2 animations in one frame can be operated separately
Perfect for venues, large and small
Ready to use right out of the box
3-pin male input and 3-pin female output
IEC power input connector
Power
Operating Voltage: AC 110-250VAC, 50-60Hz
Power Consumption: 20w
Fuse: 2A/250V
Light Source
Fat beam 50mW 532nm green DPSS
Laser class: Class 3R
Thermal
Max. Operating Temp.: 104 degrees F (40 degrees C) ambient
Control
Protocol: USITT DMX-512
4-button menu with LCD display
DMX Channels: 18
Input: 3-pin XLR Male
Output: 3-pin XLR Female
Operating Modes: Standalone, Sound Active, Auto-Beam, Auto-Animation, DMX512, Master/Slave
Weight & Dimensions
Length: 7.1 inches (180 mm)
Width: 5.5 inches (140 mm)
Height: 10.6 inches (270 mm)
Weight: 6.7 lbs (3 kg)
backed by Blizzard’s 2-year warranty!
Additional Details
- SKU:
- 123575
- UPC:
- 685450870023
- Condition:
- New
- Width:
- 8.00 (in)
- Height:
- 6.00 (in)
- Depth:
- 11.00 (in)
