Description

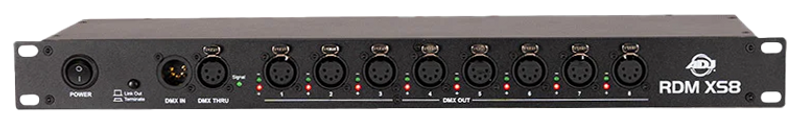

The ADJ RDM XS8 is a professional-grade 8-way DMX and RDM data splitter designed to cleanly distribute a single DMX512/RDM universe to multiple outputs. Housed in a compact 1U 19-inch rackmount chassis, it features one 5-pin XLR input, one 5-pin thru, and eight 5-pin XLR outputs, making it an ideal backbone for modern entertainment lighting systems in clubs, churches, theaters, and touring rigs.

Overview

Built for reliable signal distribution, the RDM XS8 takes one DMX input and splits it into eight electrically isolated outputs, helping prevent interference, ground loops, and signal drops. A Link Out Termination Switch and DMX/RDM Protocol Switch add flexibility for both legacy DMX-only installs and newer RDM-enabled fixtures. With universal 100–230V AC operation and low power consumption, it’s a compact, efficient solution for streamlining DMX cabling and boosting signal integrity over long runs.

Key Features

8-way DMX & RDM splitter – Distributes one DMX/RDM universe to eight isolated outputs.
19-inch 1U rackmount – Slim, space-saving design for standard rack cabinets and control racks.
5-pin XLR connectivity – 1 × DMX/RDM input, 1 × DMX/RDM thru, and 8 × DMX/RDM outputs.
DMX512 & RDM compatible – Supports standard DMX control as well as bi-directional RDM communication.
Electrical isolation & signal regeneration – Helps protect against wiring faults and maintains a clean signal over long cable runs.
Link Out Termination Switch – Easily enable or disable termination on the thru output to match your cabling topology.
DMX/RDM Protocol Switch – Select DMX-only or DMX+RDM operation for maximum compatibility with older fixtures.
Professional build quality – Robust metal housing and front-panel controls optimized for daily use in demanding environments.
Universal power supply – Auto-ranging 100–230V AC input for use in touring and global installations.
Low power consumption – Highly efficient design (approx. 3.1–3.3 W), ideal for packed racks and mobile rigs.
CE & ETL certified – Meets key safety and performance standards for professional installations.

Technical Specifications

Product Type: DMX/RDM data splitter / booster
Brand / Model: ADJ RDM XS8
SKU: RDM800
UPC: 810087372651

Protocols & Compatibility

Supported Protocols: DMX512, RDM
Typical Use: Splits a single DMX/RDM line into 8 isolated outputs
Applications: Entertainment lighting, stage, architectural, club, touring and install systems

Connectors & I/O

DMX / RDM Input: 1 × 5-pin XLR (indoor)
DMX / RDM Thru: 1 × 5-pin XLR (indoor)
DMX / RDM Outputs: 8 × 5-pin XLR (indoor)
Switches: Link Out Termination Switch, DMX / RDM Protocol Switch
Isolation: Electrically isolated outputs for improved safety and signal integrity

Electrical

AC Input: 100–230 V AC, 50/60 Hz
Power Consumption: approx. 3.1 W @ 120 V, 3.3 W @ 230 V
Power Protection: Fuse protection (T1.25A/250, 5.2 × 20 mm)

Physical

Form Factor: 19" rack mount, 1U height
Width: 19" (482 mm)
Depth (Length): 6" (152.4 mm)
Height: 1.73" (44 mm)
Weight: 4.87 lb (2.21 kg)
Housing: Metal chassis, indoor use
Color: Black

Certifications

Certifications: CE, ETL (region/market dependent)

Ideal Applications

Permanent club and bar installations with multi-zone lighting
Churches and houses of worship with distributed DMX lines
Theaters, performance venues, and auditoriums
Touring rigs and event production racks
Architectural and ambient lighting systems requiring reliable DMX distribution

What’s in the Box

ADJ RDM XS8 8-Way DMX & RDM Data Splitter
AC power cable (region dependent)
User manual / quick start documentation

Why Choose the RDM XS8

The ADJ RDM XS8 is an excellent choice when you need rock-solid DMX and RDM distribution in a streamlined 1U package. With eight isolated outputs, flexible protocol and termination switches, universal power input, and a rugged rackmount design, it delivers the reliability and control needed for professional lighting networks while simplifying your cabling and system layout.
