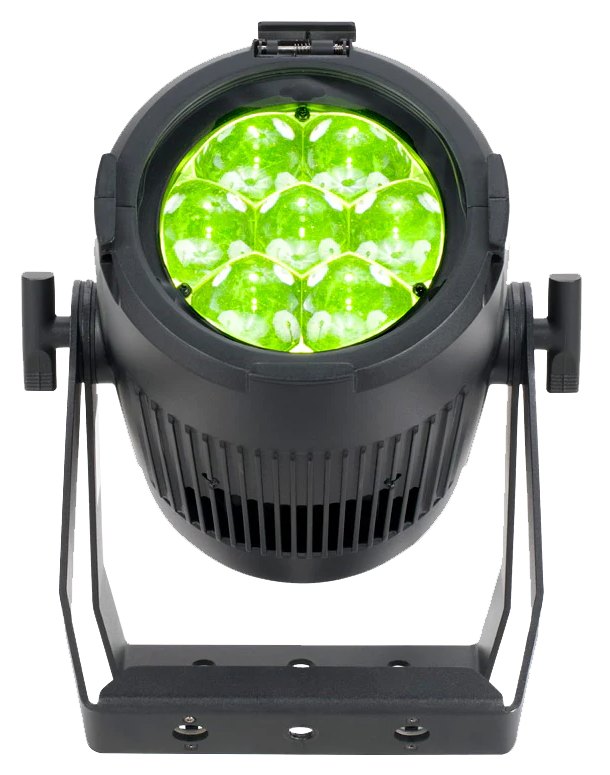

ADJ Encore Z7LP – RGBL LED Par with Motorized Zoom

ADJ Encore Z7LP – RGBL LED Par with Motorized Zoom (5°–50°) + Variable White CCT (2700K–7000K)

The ADJ Encore Z7LP is a professional-grade LED par fixture built for stages, churches, event production, broadcast, and installations that demand punchy output, smooth color mixing, and camera-friendly performance. It features 7 × 20W RGBL (Red, Green, Blue, Lime) LEDs with a motorized 5°–50° zoom, delivering tight beams, wide washes, and an expanded color gamut that excels at vibrant tones and natural-looking whites. With linear color temperature control from 2700K to 7000K, multiple dimming curves, and flicker-free operation, the Encore Z7LP is a versatile workhorse for modern lighting rigs.

Key Features

• Motorized Zoom: 5°–50° with quick, repeatable coverage control
• RGBL Color Mixing: 7 × 20W quad LEDs for rich color and smoother blends
• Variable White CCT: 2700K–7000K (plus convenient preset whites)
• Camera-Friendly: adjustable refresh rate (900–25,000Hz) and flicker-free performance
• Wireless DMX Built-In: WiFLY EXR (up to 2500 ft / 700 m line of sight)
• RDM + Network Ready: supports RDM and wired digital communication network
• Quiet Operation: quiet fan mode for sensitive environments

Zoom Presets & White Presets

• Zoom Presets: Very Narrow 6°, Narrow 10°, Medium Flood 30°, Wide Flood 40°, Very Wide Flood 50°
• CCT Presets: 2700K, 3200K, 4000K, 5600K, 6500K

Color & Effects

• 16-bit fine color control for Red / Green / Blue / Lime
• 64 built-in color macros
• LED pulse + strobe effects
• Electronic dimming: 0–100%
• 6 dimming modes: Standard, Stage, TV, Architectural, Theatre, Stage 2
• 4 dim curves: Linear, Square, Inverse Square, S-Curve

Control Modes & DMX

• Rear Display: 4-button DMX digital display
• Operational Modes: Static Color, RGBL Dimmer, Program, Sound Active, DMX
• DMX Modes: 6 / 9 / 10 / 12 / 15 / 18-channel
• Connections: 5-pin XLR DMX In/Out
• Wireless: WiFLY EXR built-in; also compatible with Aria X2 transceivers

Performance

• CRI: 84
• CRI R9: 76.6
• Output: 2500 lumens

Construction

• All-metal construction
• Locking power In/Out connectors
• Scissor yoke + safety eye

Electrical

• Multi-voltage: AC 100–240V, 47/63Hz
• Daisy-chain: 10 fixtures @ 120V / 20 fixtures @ 220V
• Max power: 103W

Dimensions & Weight

• Dimensions (L×W×H): 8.3” × 11.5” × 14.8” (211.0 × 292.5 × 376.0mm)
• Weight: 15 lbs (6.8 kg)

Approvals & Rating

• CE Certified
• IP Rating: IP20 (indoor use)
• cETLus: Pending

Included Accessories

• (1) Power Cord
• (1) Safety Cable
• (1) Gel Frame Assembly

Optional Accessories

• Omega Bracket: Omega 107mm (Sku: Z-8050000053)
• Barn Door: ELPZ7BDA (Sku: ELP377)

Specifications are subject to change without notice.
