Description

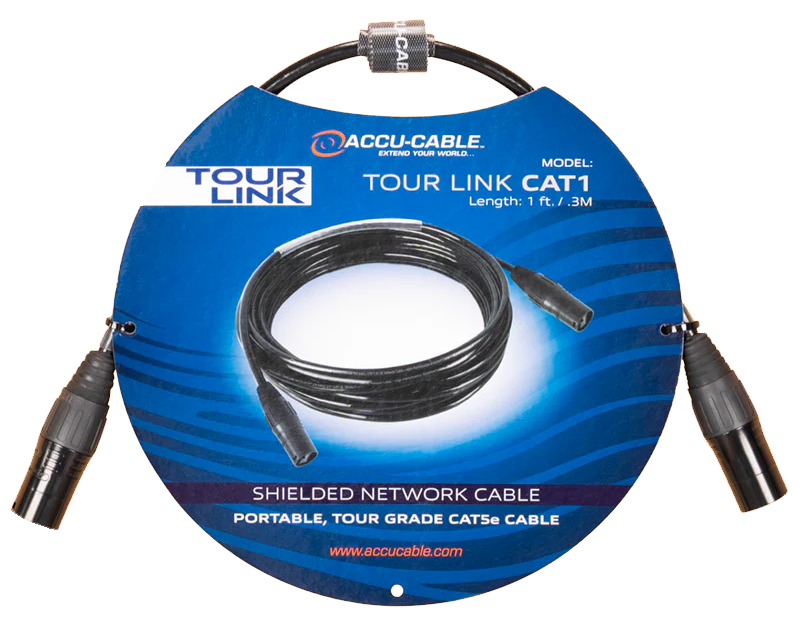

The Accu-Cable TOUR LINK CAT1 is a professional-grade 1 ft. (0.3M) CAT5e network cable engineered for lighting, video, and data networking applications. Built to 24-gauge, 4-pair twisted pair specifications, it provides high-speed, interference-free performance that meets the demands of live production, touring, and permanent installations.

Designed for reliability and flexibility, the TOUR LINK CAT1 ensures stable data transmission for both Art-Net and sACN lighting control systems as well as video networking setups. Its Oxygen-Free Copper (OFC) conductors and Tinned Copper shielding deliver excellent noise immunity, durability, and long-term stability.

Professional Design

Accu-Cable’s TOUR LINK Series is engineered specifically for demanding event environments, combining rugged construction with optimal electrical characteristics. Whether used on stage, in an arena, or within architectural lighting installations, this cable guarantees consistent performance and maximum uptime.

Key Features

High-performance CAT5e shielded network cable
1 ft. (0.3M) length ideal for rack-mount and interconnect use
24-gauge, 4-pair twisted pair with Oxygen-Free Copper (OFC) conductors
Superior shielding for reduced interference and crosstalk
Supports speeds up to 1 Gbps over 100 meters
Optimized for lighting control (Art-Net, sACN) and video networking
Durable TPU outer jacket for touring and industrial use
Black outer jacket with printed identification
RoHS compliant and CE certified

Product Structure Characteristics

Conductor Specification: 4×2×0.22 mm² / 24 AWG
Conductor Structure: OFC 7/0.20BC (Oxygen-Free Copper)
Insulation Material: FPE (Foamed Polyethylene)
Insulation Colors:
- BU / BU-WH (Blue / Blue-White)
- OG / OG-WH (Orange / Orange-White)
- GN / GN-WH (Green / Green-White)
- BN / BN-WH (Brown / Brown-White)
Insulation Outer Diameter: 1.00 mm
Shield Structure: 16/10/0.10TC (Tinned Copper) with 92% coverage
Outer Jacket Material: TPU (Thermoplastic Polyurethane)
Outer Jacket Color: Black (BK)
Outer Diameter: 6.6 ± 0.4 mm
Cable Printing: TOUR LINK 4X2X0.22mm (24 AWG) STP CAT.SE Network Cable – High Performance Shielded Cable – RoHS Compliant
Certification: CE Certified

Electrical and Mechanical Characteristics

Withstand Voltage: 0.5 kV
Conductor Resistance (max. at 20°C): 93.8 Ω/km
Capacitance between Conductors:</st

Available in eight convenient lengths,

TOUR LINK CAT1 (1 foot / .3M)
TOUR LINK CAT3 (3 feet / 1M)
TOUR LINK CAT5 (5 feet / 1.5M)
TOUR LINK CAT10 (10 feet / 3M)
TOUR LINK CAT15 (15 feet / 4.5M)
TOUR LINK CAT25 (25 feet / 7.6M)
TOUR LINK CAT50 (50 feet / 15M)
TOUR LINK CAT100 (100 feet / 30.5M)
