Description

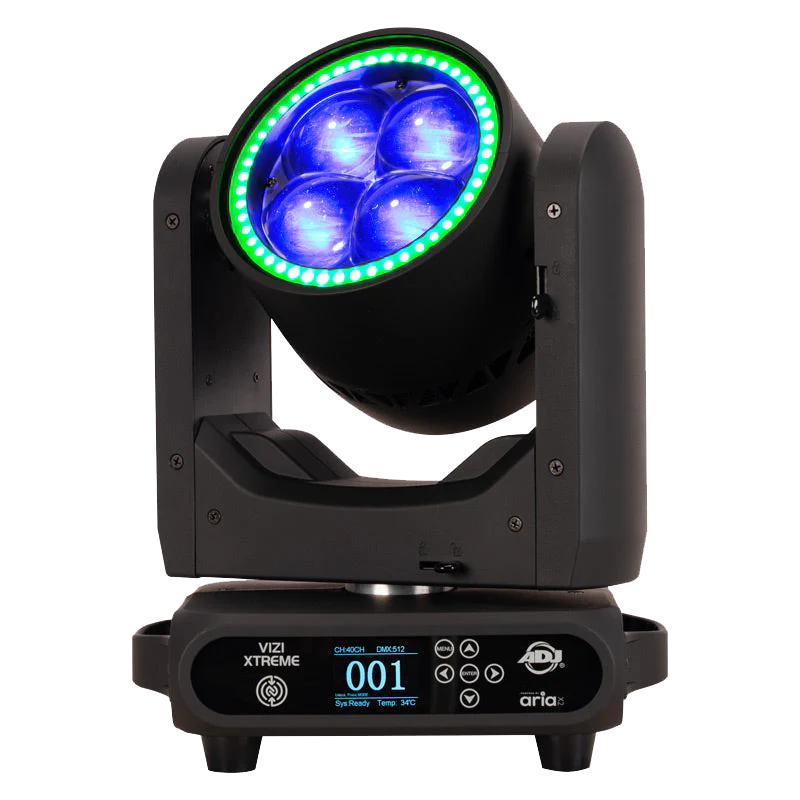

The ADJ Vizi Xtreme is a professional beam wash moving head designed for concerts, nightclubs, theaters, houses of worship, touring productions, and live event lighting. It is used to create fast aerial beam effects, wide color washes, pixel-based animations, strobe looks, and continuous pan/tilt movement from a compact, high-output fixture.

Built with four individually controlled 60-watt RGBL LEDs and an outer ring of forty-eight RGBW eye-candy LEDs, the Vizi Xtreme delivers powerful color output, layered visual effects, and advanced creative control. Its motorized zoom range moves from a tight 3-degree beam to a wide 45-degree wash, giving lighting designers the flexibility to create sharp aerial effects or broad stage coverage from the same fixture.

Designed for professional integration, the Vizi Xtreme supports DMX, RDM, sACN, ArtNet, Aria X2 wireless control, NFC setup, and multiple DMX channel modes. With ultra-fast 3-phase motors, optional 360-degree continuous pan and tilt, and a lightweight 15.4 lb design, this fixture is well suited for both compact lighting rigs and large high-density production arrays.

Specifications

Manufacturer: ADJ Lighting
Model: Vizi Xtreme
SKU: VIZ900
UPC: 810087375621
Product Type: Beam Wash Moving Head Fixture
Primary Light Source: 4 x 60W RGBL LEDs
Ring Light Source: 48 x 0.5W RGBW LEDs
LED Life Expectancy: Approximately 20,000 Hours
Color Temperature: 2700K to 10,000K
Output: 2,700 Lumens
CRI: 60
Primary Color Mixing: Red, Green, Blue, and Lime
Ring Color Mixing: RGBW
Zoom Range: Motorized 3° to 45°
Strobe Rate: 1Hz to 10Hz
DMX Channel Modes: Basic 28, Standard 40, Extended 73, Standard CMY 54, Extended CMY 63
Control Protocols: DMX, RDM, sACN, and ArtNet
Wireless System: Aria X2 Wireless Management System
NFC: Yes
Display: Full Color 180° Reversible LCD Menu Display
Control Panel: 6-Button Touch Control Panel
Movement Resolution: 8 / 16 Bit Adjustable
Data Connections: 5-Pin XLR DMX In/Out and RJ45 In/Out
Power Connections: IP65 Locking Power In/Out
Pan: 540° / 360° with 360° Continuous Pan Option
Tilt: 270° / 360° with 360° Continuous Tilt Option
Motors: 3-Phase Motors
Pan/Tilt Locks: Yes
Power Input: AC 100-240V, 50/60Hz
Maximum Power Consumption: 316W
Power Linking: 5 Units at 120V / 10 Units at 230V
Operating Temperature: -13°F to 113°F
Dimensions: 10.9" L x 7.87" W x 14.34" H
Weight: 15.4 lbs.
Approvals: CE, FCC, cETLus

Features

Compact beam wash moving head designed for professional entertainment lighting
Four 60-watt RGBL LEDs provide powerful output and smooth color mixing
Lime LED color mixing expands the color palette and improves clarity
Outer RGBW LED ring creates eye-candy effects, chase patterns, and layered visual looks
Individual pixel control for the primary LEDs allows creative programming and animation
Six-zone ring control supports dynamic halo effects and custom lighting patterns
Motorized 3° to 45° zoom transitions from tight aerial beams to wide stage washes
Optional 360-degree continuous pan and tilt creates high-energy movement effects
Ultra-fast 3-phase motors support quick movement and precise positioning
DMX, RDM, sACN, ArtNet, Aria X2 wireless, and NFC provide flexible professional control options
Full-color reversible LCD display simplifies setup, addressing, and configuration
Lightweight 15.4 lb design makes the fixture practical for touring rigs and compact production setups

Benefits

Replaces multiple fixture types by combining beam, wash, pixel, strobe, and eye-candy effects
Creates intense aerial looks, colorful washes, and layered motion effects from one compact fixture
Excellent for concerts, clubs, theaters, churches, DJs, mobile productions, and event companies
Wide zoom range gives lighting designers more flexibility for different room sizes and stage layouts
Advanced control options make the fixture suitable for both simple rigs and complex networked lighting systems
Continuous pan and tilt options help create dramatic movement-driven effects
Compact size and low weight make it easier to transport, install, and deploy in high-density arrays
Professional connectivity supports touring, rental, and permanent installation environments

The ADJ Vizi Xtreme is a powerful choice for lighting professionals who need a compact fixture with serious creative flexibility. With RGBL beam and wash output, RGBW ring effects, motorized zoom, fast movement, pixel control, and advanced wired and wireless control options, it delivers the speed, color, and visual impact needed for modern live productions and venue installations.
