Description

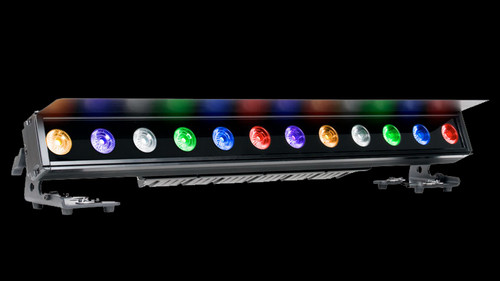

The new IP65 rated SIXBAR 1000IP™ features (12) 12W 6-IN-1 RGBAW+UV LEDs, 100,000 average hour LED life, 30° beam angle, individual control of each LED, variable dimming curve modes, strobe and chase effects, a UV wavelength of 395nm, RDM (remote device management) protocol support, IP rated DMX and power in/out connections, LCD menu display with 4 touch button control panel, dual adjustable rigging yokes and omega brackets, multiple unit power linking, rugged die-cast aluminum exterior, flicker free operation for TV and FILM, 145W max power consumption, and a multi-voltage universal auto switching power supply (110-240v).

FEATURES
IP65 Rated
12 x 12W 6-in-1 RGBAW+UV LEDs
30° Beam Angle
Pixel Control
Variable Dimming Curves
Rugged Die-Cast Aluminum Exterior
Frost Filter and Glare Shield Included

SOURCE
(12) 12W 6-in-1 RGBAW+UV LEDs
100,000 Hour Average LED Life**
**LED Life may vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

PHOTOMETRIC DATA
8,500 LUX 790 FC @3.3’ (1m) (30° Full ON)
3,660 LUX 340 FC @6.6’ (2m) (30° Full ON)
2,040 LUX 190 FC @9.8’ (3m) (30° Full ON)
1,290 LUX 120 FC @13.1’ (4m) (30° Full ON)
878 LUX 82 FC @16.4’ (5m) (30° Full ON)

EFFECTS
Pixel Control
Strobe and Chase Effects
Variable and Selectable Dimming Curves

CONTROL / CONNECTIONS
8 DMX Channel Modes (6 / 7 / 11 / 13 / 36 / 72 / 75 / 79)
4 Button Touch Control Panel and LCD Menu Display
RDM (Remote Device Management)
IP Rated DMX and Power In/Out

ELECTRICAL / THERMAL
AC 110-240V - 50/60Hz
145W Max Power Consumption
Multiple Unit Power Linking
5°F to 113°F (-15°C to 45°C)

APPROVALS / RATINGS
CE | IP65

INCLUDED ITEMS
Frost Filter
Glare Shield
