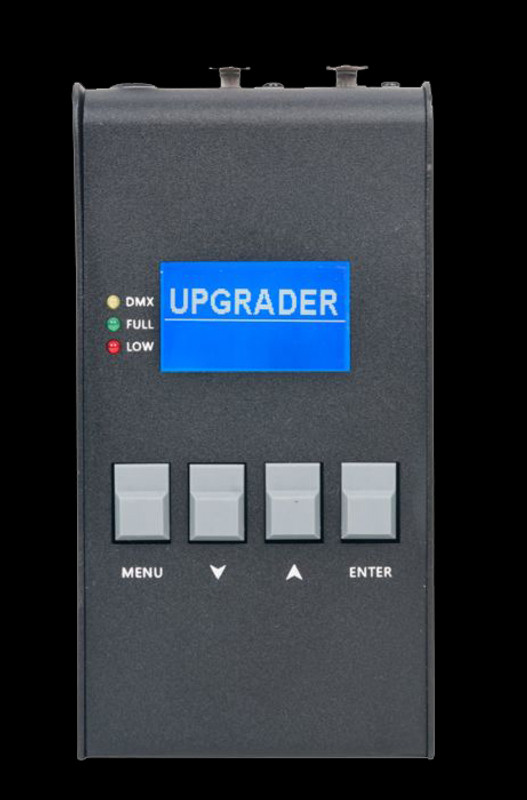

The A loader HH is a battery powered hand held software uploader device used to update Elation compatible lighting fixtures. Easily upload a software update to an Elation lighting fixture by connecting the uploader to the fixture using a 3pin or 5pin DMX cable (not included). Elation software updates (not included) are stored on a SD card (included) and inserted into the uploader. A loader HH™ features an LCD display, 4 push button control panel, a SD card slot, 3pin and 5pin XLR DMX outputs, an On/Off switch and includes a 12VDC external power supply and blank SD card.
CONTROL / CONNECTIONS
- 4 Push Button Control Panel
- LCD Menu Display
- 3pin and 5pin DMX Out
- SD Card Slot
- Mini USB Input
- 12VDC Power Input
SIZE / WEIGHT
- Length: 6.8” (173mm)
- Width: 3.4” (86mm)
- Vertical Height: 2.0” (51mm)
- Weight: 1.1 lbs. (0.5 kg)
ELECTRICAL
- 12VDC External Power Supply
INCLUDED ITEMS
- SD Card
- 12VDC External Power Supply
Specifications and documentation subject to change without notice.
