Description

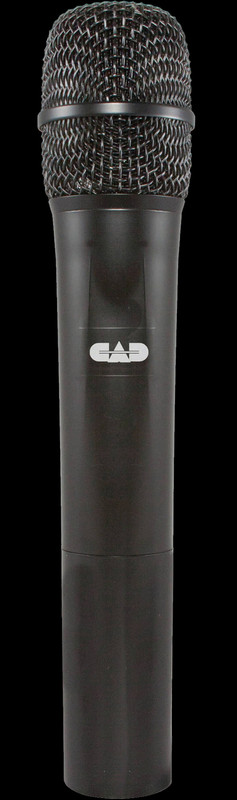

The TX1600 UHF Handheld Transmitter from CAD is designed to be used with WX1600 StagePass Wireless Systems. The transmitter features a SoftTouch power switch which can be held down for 2 seconds to turn the transmitter on or off, or can be momentarily pressed to mute or unmute the audio. A tri-color LED indicator light displays the transmitter's status.
A green light indicates that the transmitter is powered up and the audio is live, an orange light indicates that the transmitter is powered up and the audio is muted, and a flashing red light indicates a low battery status. The transmitter also includes an IR node for Scan-Link operation. Powered by 2 AA batteries, the transmitter can run for up to 15 hours.
- SoftTouch power switch
- Power switch can be used for both on/off function, and to mute/unmute the audio
- Tri-color LED indicator light
- IR node for Scan-Link operation
- Powered by two AA batteries for up to 15 hours
Specifications
Operating Principle: Microphone: Moving coil dynamic
Polar Pattern: Cardioid
Frequency Response: 40 Hz to 15 kHz
SPL Maximum: 130 dB
Dynamic Range: 110 dB
RF Output: 10 mW
Power Requirements: 2 x AA batteries
Battery Life: >15 hrs
Dimensions: 9.5 x 1.9" / 24.1 x 4.8 cm
Weight: 7.3 oz / 207.0 g
Additional Details
- SKU:
- TX1600
- UPC:
- 631922106909
- Condition:
- New
- Width:
- 3.00 (in)
- Height:
- 8.00 (in)
- Depth:
- 3.00 (in)
