Blizzard IRiS Icon IP3 3.9mm Outdoor IRiS LED Panel
IRiS ICON panels are in the perfect locking position as soon as you take them out of the case, and lock together with a quick flick of the thumb. We also added one-touch retractable metal corner protectors, blackout gaskets & ground support locks all within its ultra lightweight frame. The panels feature NovaStar A8s receiving cards, which offer HDR10 & HLG support, automatic module calibration, image rotation and more. As the US' largest NovaStar distributor, we work hand-in-hand with them to develop custom firmware solutions to handle virtually any application.

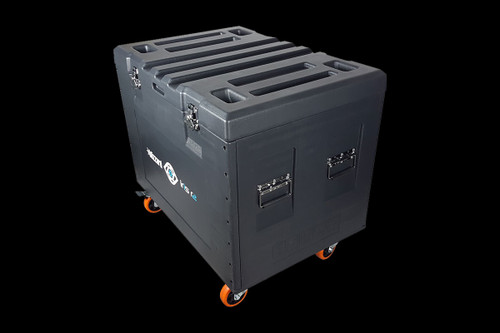

With room for eight 500x500mm IRiS ICON IP3 or five 1000x500mm ICON IP3 XL panels each, even our ATA-spec roto-molded road cases are better than ever. Experience the simple bliss of self-aligning magnetic casters, which makes stacking cases for transport a breeze. IRiS ICON panels are now covered by the industry's only seven-year limited warranty, with coverage designed specifically to keep your panels in the field, not in a repair shop. Check out the full details of our rock-solid "No Fears for 7 Years" warranty.
Overview
- IP65 (front) / IP54 (rear)
- Installed receiving card: NovaStar® A8s
- Die cast aluminum
- Front or back maintenance
- Corner protectors
- Ground support locks
- Blackout gaskets
- Quick-thumb locking
- Certifications: FCC, ETL, CE, RoHS
Tech Specs
- Dimensions: 500 x 500 x 73mm
- Curvature: ±9°
- Viewing angle: 140° / 140°
- Optimal viewing distance: 3.9 - 39.0 meters
- Working temp: -20°~+50° C
- Working humidity: 10% - 90% RH
Module Specs:
- Module quantity: 2 x 1
- Resolution: 64 x 128
- Pixel quantity: 8,192
- Dimensions: 250 x 500 mm
Optical
- LEDs: NationStar® 1921 (100,000 hours)
- Pixel pitch: 3.9 mm
- Resolution: 128 x 128
- Pixel quantity: 16,384
- Pixel density: 65,536 dots/m2
- Scan mode: 1/16
- Brightness: 4,500 nit
- Contrast: 5,000:1
- Color depth: 14 bit
- Grayscale: 22 bit+ / Clearview
- Refresh rate: 3,840 Hz
- HDR: HDR10-Optima / HLG
Power
- 110~220VAC, 50/60 Hz
- Input power: 1,000 W/m2
- Avg. power consumption: 267 W/m2
- Max. power consumption: 800 W/m2
Warranty
- 7-year limited warranty
Dims & Weight
- 19.7" L x 19.7" W x 2.9" H
- 16.6 lbs
Additional Details
- SKU:
- IRiS Icon IP3 3.9MM
- UPC:
- Condition:
- New
- Width:
- 20.00 (in)
- Height:
- 20.00 (in)
- Depth:
- 20.00 (in)
