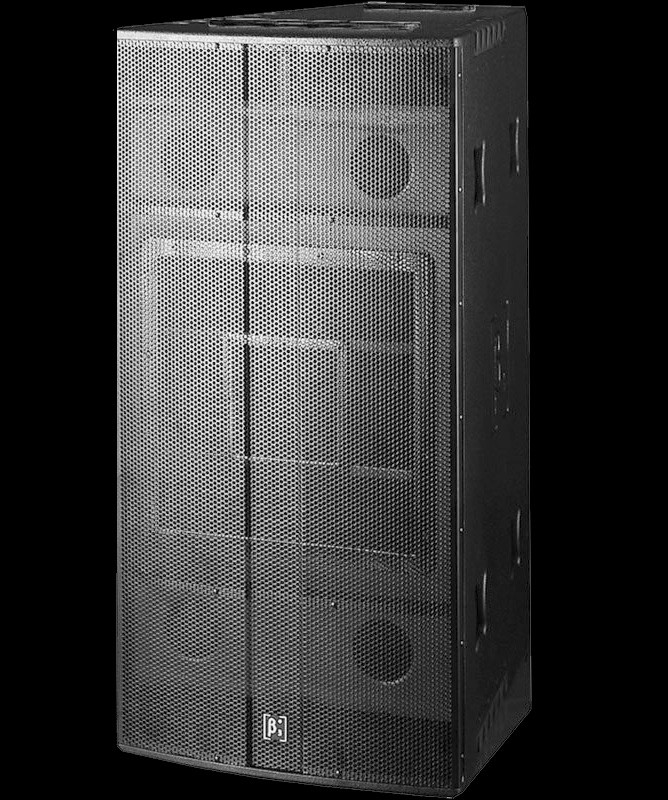

Description

ΣH Series speakers utilize high power low frequency drivers with structurally solid enclosures in classic horn-loaded and bandpass configurations.

Features:
High sensitivity and SPL
1 x 15” high power low frequency transducer
1 x 12” high power mid frequency transducer
1 x 3" titanium diaphragm compression driver
Rotatable Horn
2 x NL4 connectors
Bi-amped configuration
Computer aided design to optimize frequency and phase response
Multi purpose cabinet design for FOH or monitor use
Mounting points for permanent installation (wall, ceiling)
Powder coated grill
Durable Polyurethane textured base paint
2 x XLR connectors

Construction: 15mm Birch Plywood

Transducers:
1 x 3” HF Compression Driver
1 x 12” MF
1 x 15” LF

Crossover:
2.5kHz HF/MF
180Hz MF/LF

Frequency Response (-3dB): 45Hz-20kHz
Rated Power: 500W (RMS)
Sensitivity (1W @ 1m): 99dB
Rated Impedance: 8kΩ HF, 8kΩ MF, 8kΩ LF
Dispersion (H x V): 60° x 40°
Connector: 2 x NL4

Net Dimensions: 24.8″ x 31.1″ x 39.4″
Net Weight: 190.7 lbs

Gross Dimensions: 31.1″ x 37.4″ x 46.1″
Gross Weight: 205 lbs

Oversized Shipping Item / Fixed Shipping
