Description

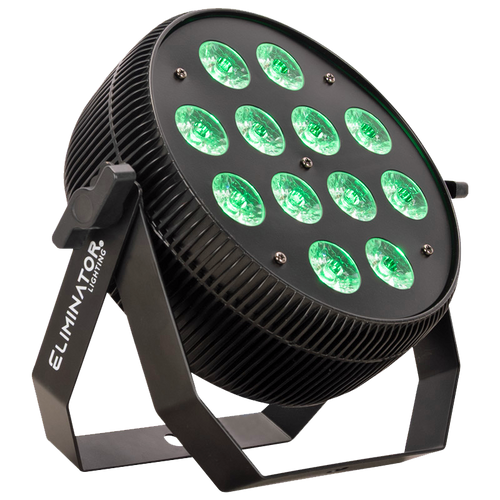

The LP 12 HEX is powered by twelve 5-watt HEX (RGBWA+UV) LEDs with a 25-degree beam angle. It is made from durable plastic with a metal scissor yoke. The LP 12 HEX is designed for permanent of portable use. It’s great for installation in small stages, lounges, bars and fun centers, or one-off use for events, mobile DJs, and its small enough to fit inside square truss for a ‘truss warming’ effect.
The LP 12 HEX may be used in sound active mode or connected with DMX cables to use the built-in programs and linkable features. It has 3-pin DMX in/out, as well as, IEC in/out connections to daisy chain the power from one fixture to another. There is also a 4-button function menu with and LED display to help navigate though the different features.
Specifications
• LEDs: 12 x 5-Watt HEX LEDs (RGBWA+UV: Red, Green, Blue, White, Amber + UV)
• Beam angle: 25-degrees
• Ultra violet wavelength: 395-400nm
• DMX channels: 4 or 8 selectable
• Auto, sound active and master/slave modes
• 0-100% dimming and variable strobe
• 4 push button menu with LED display
• Scissor yoke included
• 3-pin DMX In/Out
• IEC In/Out connections to daisy chain power
• Power consumption: 54W max
• Multi-voltage power: 100~240V, 50/60Hz
• Fuse: F2A 250V
• Dimensions (LxWxH): 10"x10"x4.25" / 250 x 250 x 105mm
• Weight: 3 lbs. / 1.2kg
Downloads
| LP 12 HEX Cut Sheet | Download | |
| Photometric Data | Download | |
| Photometric Data | Download | |
| Photometric Data | Download | |
| Photometric Data | Download | |
| Photometric Data | Download | |
| Photometric Data | Download | |
| Photometric Data | Download | |
| Photometric Data | Download | |
| Photometric Data | Download | |
| Photometric Data | Download | |
| LP 12 HEX - User Manual | Download |
Additional Details
- SKU:
- LP 12 HEX
- UPC:
- Condition:
- New
- Width:
- 12.00 (in)
- Height:
- 12.00 (in)
- Depth:
- 6.00 (in)
