Description

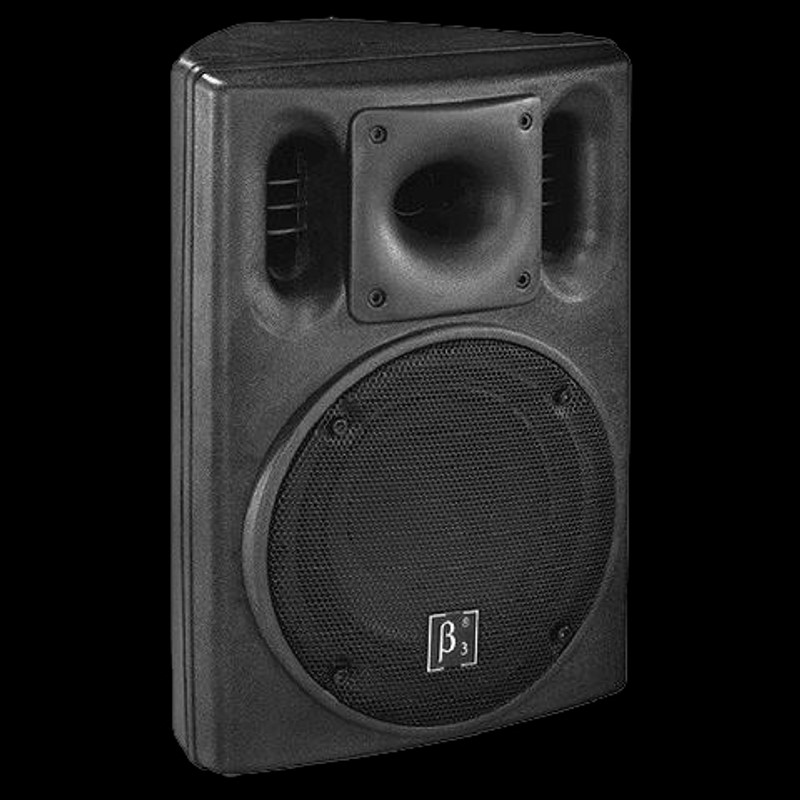

Beta 3® U12A 400W 12" 2-Way Full Range Powered Loudspeaker

Features:
    High sensitivity and SPL
    1 x 12" high power transducer with 50mm voice coil
    1 x 1.7" diaphragm compression driver
    Rotatable Horn: 50°-100° x 55° controlled coverage pattern
    Built-in Bi-amp power amplifier module
    Master volume control
    Bass and Treble control
    Heavy duty protective grill
    XLR input and output connectors
    Switchable between Mic and Line input
    Injection molded
    2 x XLR connectors
    Suitable for use as a main system with or without sub speaker augmentation
    Cabinet design for FOH and Monitor use
    Portable system (stand), or permanent installation (wall, ceiling, under balcony)
    Arrays with all active high power U Series sub speakers for extended low frequency, high quality music reproduction

Construction: Plastic

Transducers:
    1 x 1.7" HF
    1 x 12" LF

Frequency Response (-3dB): 55Hz-18kHz

Rated Power:
    100W HF
    300W LF (RMS)

Amplifier Type: Class H
Maximum SPL (1W @ 1m): 118dB (Peak)
Input Impedance: Balanced 20kΩ, Unbalanced 10kΩ
Rated Impedance: 8Ω
Dispersion (H x V): 50°-100° x 55°
Connector: 2 x XLR
Net Dimensions: 16.3″ x 15″ x 24.4″
Net Weight: 50.7 lbs.
Gross Dimensions: 18.3" x 17.1" x 26.8"
Gross Weight: 55.6 lbs.
