Description
These medium sized line array loudspeakers are used in applications including sound reinforcement for houses of worship, events, indoor stadiums, theme parks, multi-functional auditoriums, schools, and transit terminals. Excellent for live, rental and portable sound reinforcement applications. The TLA Series line array loudspeakers deliver extraordinary performance where high speech intelligibility and natural sounding music is required.
Features:
High output SPL and sensitivity
2 x 10" high power Neodymium transducers
2 x 3" Neodymium HF compression driver
Bi-amp configuration
Patented waveguide design
120° x 30° coverage pattern
2 x NL4 connectors
Computer aided design to optimise frequency and phase response
Cabinet design for FOH use
Suitable for use as a main system with or without sub speaker augmentation
12 x TLA101 can be arrayed in a single vertical column
Trapezoidal cabinet with with integrated flywear and locking pins makes assembly and disassembly easy
Rigging allows adjustment from 0°-5° in 1° increments
Powder coated grill
Can be arrayed with TLB-101
Durable Polyurethane textured base paint
For optimum performance use with a Beta Three® a digital speaker management processor
Construction:
15mm Birch Plywood
Transducers: 2 x 3” HF Compression Driver + 2 x 10” LF
Frequency Response (-3dB): 1kHz-19kHz HF 100Hz-4kHz LF
Rated Power: 70W (RMS) HF 400W (RMS) LF
Sensitivity (1W @ 1m): 110dB HF, 102dB LF
Rated Impedance: 8Ω HF, 8Ω LF
Dispersion (H x V ): 120° x 30°
Connector: 2 x NL4

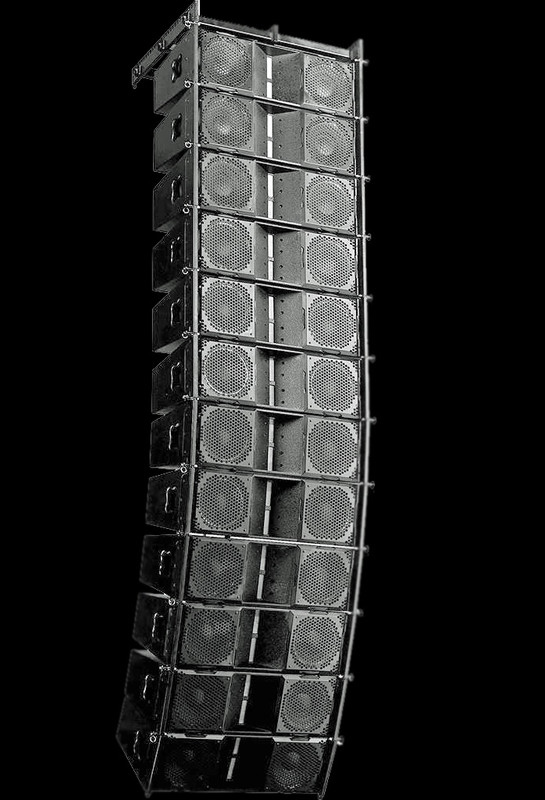

Image above of multiple speakers set up in a system
Net Dimensions: 31.5″ x 19.8″ x 11.8″
Net Weight: 49.5 lbs
Gross Dimensions: 35.1″ x 23.1″ x 15.4″
Gross Weight: 56.1 lbs
Oversized Shipping Item / Fixed Shipping
Additional Details
- SKU:
- B3-TLB-101
- UPC:
- 22228880196
- Condition:
- New
- Width:
- 23.00 (in)
- Height:
- 23.00 (in)
- Depth:
- 37.00 (in)
