Description

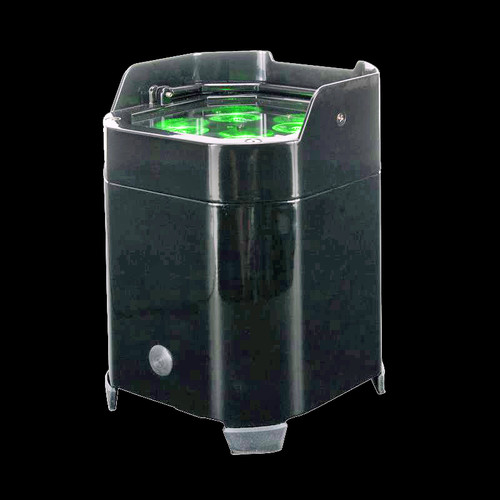

Element HEXIP, which offers the ultimate in wireless up-lighting. It combines the same 6-in-1 LEDs as the Element HEX but fitted into an IP-rated enclosure. This allows literally any hue or shade of color to be created absolutely anywhere, indoors or out, with no need for power or signal cables.

All four of the models in the range are fitted with wireless DMX receivers that utilize ADJ’s WiFLY EXR (extended range) technology. This means that they are capable of receiving a wireless control signal from a compatible ADJ WiFLY EXR controller or transceiver from a distance of up to 2,500 feet. In addition to DMX, the units can also be controlled wirelessly via infrared using either ADJ’s UC-IR remote or Airstream IR iPad/iPhone control system (both sold separately). They can also run in standalone mode, with a 4-digit LED display on the back panel providing a menu-driven interface that allows access to preset color macros, automatic color change and fade patterns, as well as full color mixing.

Specifications
Optical:
• 4 x 10-Watt RGBAW+UV LEDs (6-in-1 - Red, Green, Blue, Amber, White & UV)
• Life expectancy: rated at 50,000 hrs.
• LUX: 684 @ 2M; 171 @ 4M
• Beam angle: 20-degree
• PWM frequency:1000Hz

Connection:
• DMX: WiFLY EXR Wireless DMX
• IEC connection to power/charge fixture

Control:
• Control protocol: WiFLY EXR DMX
• 5 DMX Channel modes: 6, 7, 8, 11, or 12
• Remote control: WiFLY EXR DMX, UC-IR, Airstream IR
• 5 Operational modes: RGBAW+UV Dimmer Mode; Sound Active mode; Auto Run Mode (16 color change modes, 16 color fade modes, & 1 color/fade combo mode); Static Color mode; and DMX Controlled

Features:
• IP54 Outdoor Rated
• Built-in kickstand to angle figure while it’s on the floor
• 4-button DMX menu display on rear panel with water resistant hatch
• Built-in WiFLY EXR wireless DMX: Up to 2,500 feet (760M) when used with ADJ’s WiFLY EXR Battery Transceiver
• 64 built-in Color Macros
• Variable RGBAW+UV color mixing offers a smooth, seemingly unlimited color palette - Great for Stage or Wall Washing!
• LED pulse and strobe effect (0.2Hz-11Hz)
• Flicker Free Operation
• Electronic Dimming: 0 - 100% with 5 dimming curves
• Run all night – No duty cycle
• Energy Saving Mode

Battery:
• Battery Type: fixed lithium battery
• Battery Energy: 73.26WH (Watt Hours)
• Battery Weight: 0.42 kg.
• Battery Voltage: 11.1V
• Battery Capacity: 6.6AH
• Total Lithium Ion Cells: 9 pieces
• Battery Wrap Material: PVC sleeving + highland barley paper
• Battery Charge Time: 4.5 Hours (With POWER switch On)
• Battery Life: 11 hours (single color)

Electrical:
• Power Draw Total (All LED's @ Full On): 45W, 0.5A @ 120V/60Hz, 42W, 0.2A @ 220V/50Hz,
• Multi-voltage operation: AC 100-240V, 50/60Hz

Dimensions / Weight:
• Dimensions (LxWxH): 5.5” x 5.5” x 7.5” / 140 x 140 x 140mm
• Weight: 6.5 lbs. / 2.9kg.

Certifications:
• CE Approved
• IP54 Outdoor rated
