Description

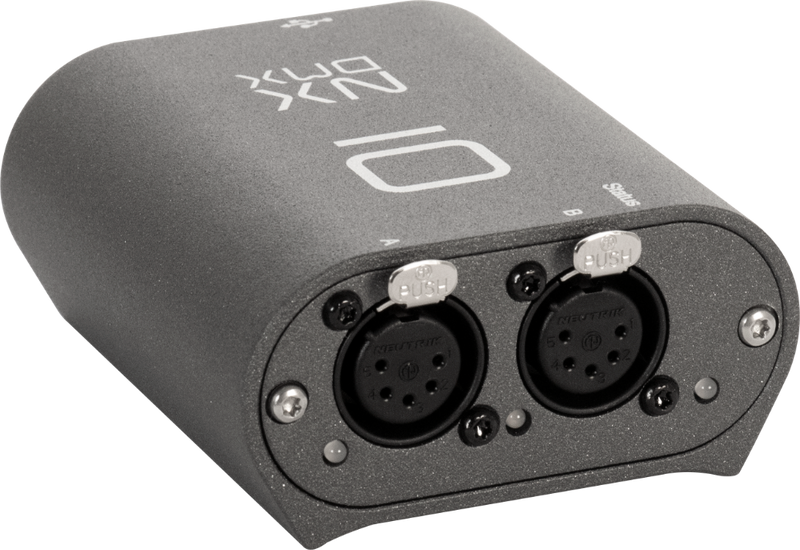

NX DMX is a USB powered 2 port DMX Node. As a member of the innovative ONXY platform from Obsidian Control Systems the NX DMX provides instant access to DMX In and Outputs as well as RDM communication. The device is plug and play and requires no drivers or additional configuration to integrate with ONYX. It is designed to work with any PC but also works with any ONYX console as a fast wayand affordable optionto add two additional DMX ports.NX DMX supports ONYX on PC systemsforup to four Universes without any dedicated license. When connected to an ONYX licensedPC or a console the NX DMX is assignable to any one of 255 Universes.
NX DMX allows for the fullONYX system to be used in many situations, from small events, tradeshows to clubs and churches. Many technicians utilize ONYX through the NX DMX as an affordable but powerful tests station due to ONYX outstanding library support.
Key Features Key Features
- Instant ONYX PC system –Plug and Play
- USB to DMX512 adapter
- Optically Isolated for equipment protection
- Internal DMX processor, customizable refresh rates
- 2x 5pin XLR DMX (In or Out) –1024 Ch.
- RDM Support
- Rugged metal housing
- Kensington Security Slot
Connections
- 2 x DMX / RDM Universe In/Out: 5-pin locking XLR
- USB Input: USB 2.0-B
Specification
- Physical Dimensions
- Length: 92 mm (3.7 in.)
- Width: 82 mm (3.3 in.)
- Height: 41mm (1.7 in.)
- Weight: 245g (0.6 lbs.)
Electrical Specifications
- Power: 5VDC over USB
- Maximum current 300mA
Requirements
- Windows 7,8 or 10
- USB 2.0 port
- ONYX or LightJockey 2 software
Included Items
- USB Cable
Additional Details
- SKU:
- NXD986
- UPC:
- Condition:
- New
- Width:
- 4.00 (in)
- Height:
- 4.00 (in)
- Depth:
- 6.00 (in)
